Motor Customized Specification available. Please reach out for tailor-made requests.
Product Details

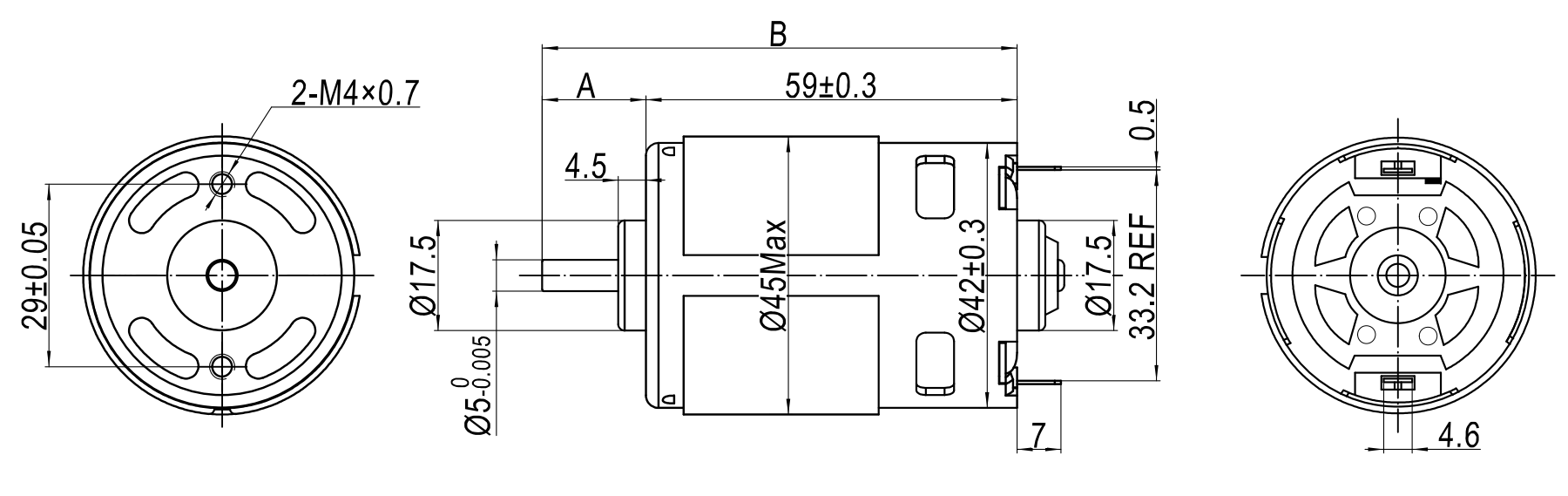

------ RS - 755 H

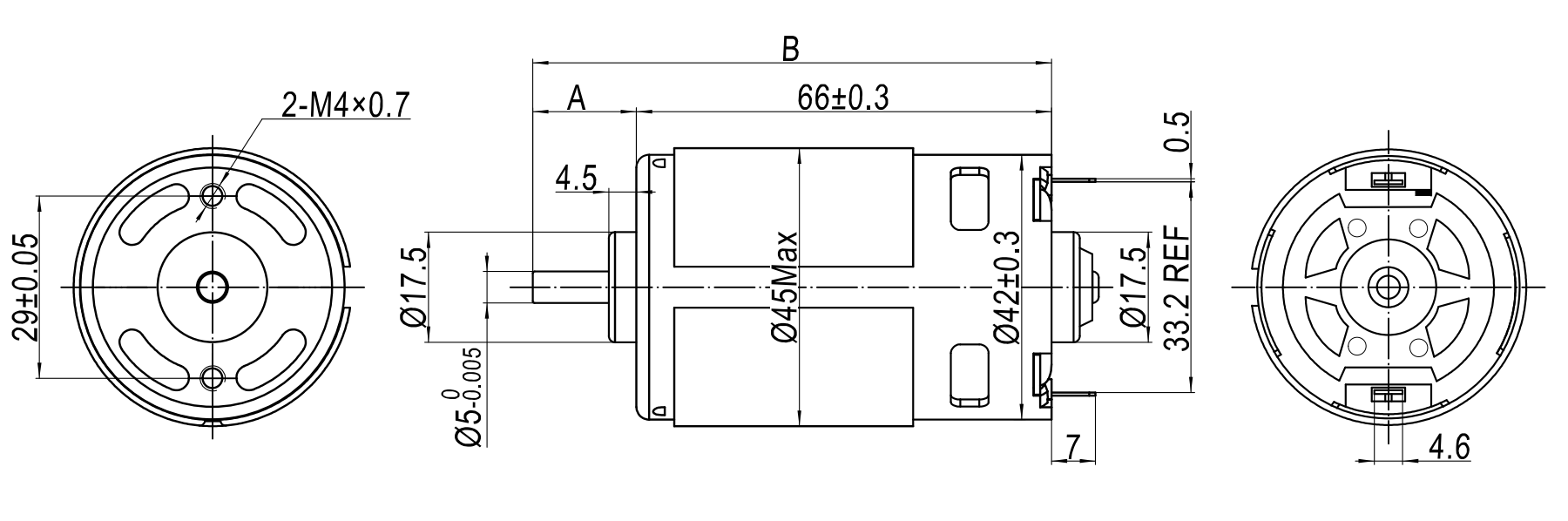

------ RS - 775 H
The length of the shaft can be customized according to your requirement.
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| Unit | VDC | VDC | RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | |
| RS-770H | 8523R | 6.0~12.0 | 12 VDC | 15000 | 2.2 | 13177 | 15.91 | 81 / 826.2 | 111.8 | 115 | 666.9 / 6802 |
| RS-775H | 25110R | 6.0~24.0 | 24 VDC | 3478 | 0.15 | 2925 | 0.75 | 44.4 / 452.9 | 13.35 | 4.07 | 245.7 / 2506 |
Looking forward to your feedback!
We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of industry expertise.
We can set up an online Trade Assurance Order for new customers, which allows payment via MasterCard, Visa, etc. Customers can also choose to pay via PayPal, TT, or other convenient methods.
Yes, we can customize and configure a suitable motor based on our customer's specific technical parameters and requirements.
Yes, we hold CE, FCC, ISO, and other relevant industry certifications. If you need any specific certificates for your market, we can apply for them on your behalf.
We have dedicated quality control inspectors stationed at every process of our production lines. Once production is completed, we run the finished motors through comprehensive testing machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
Yes, the shaft length, connection style, and other critical dimensions can be custom-machined according to your installation requirements.
