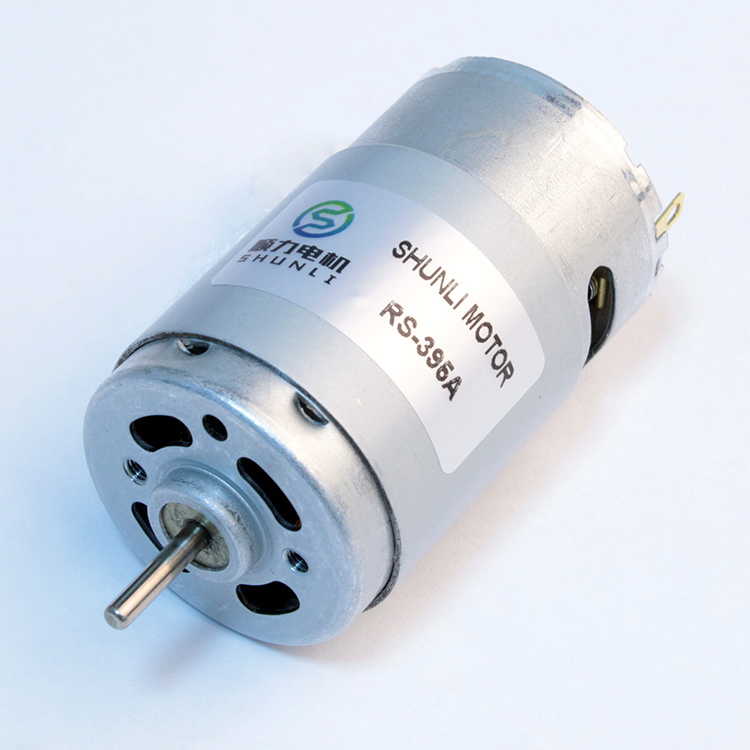

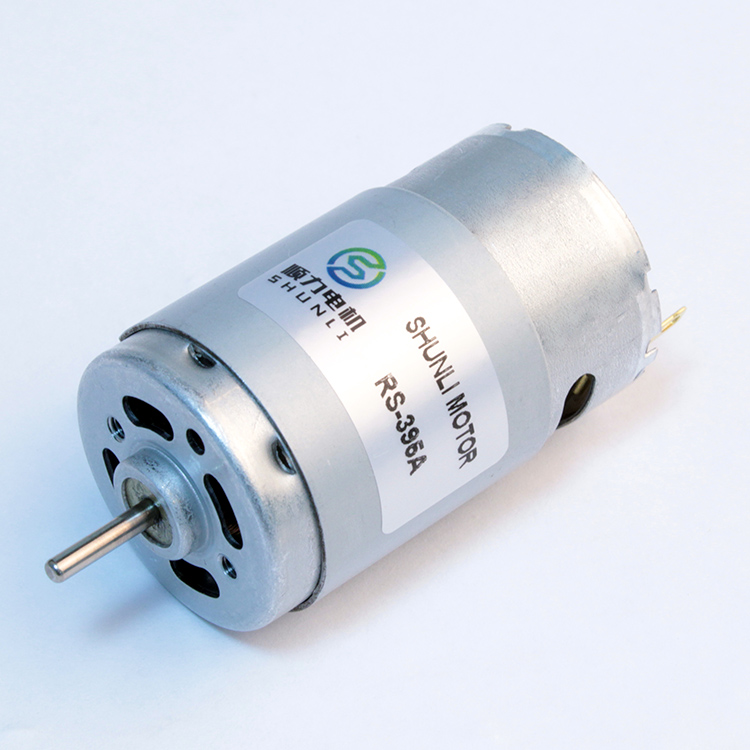

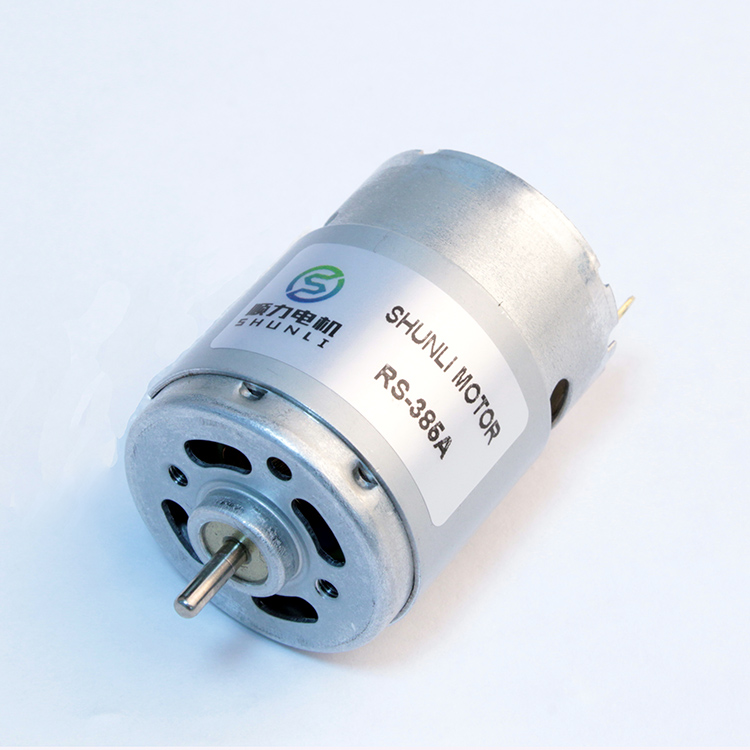

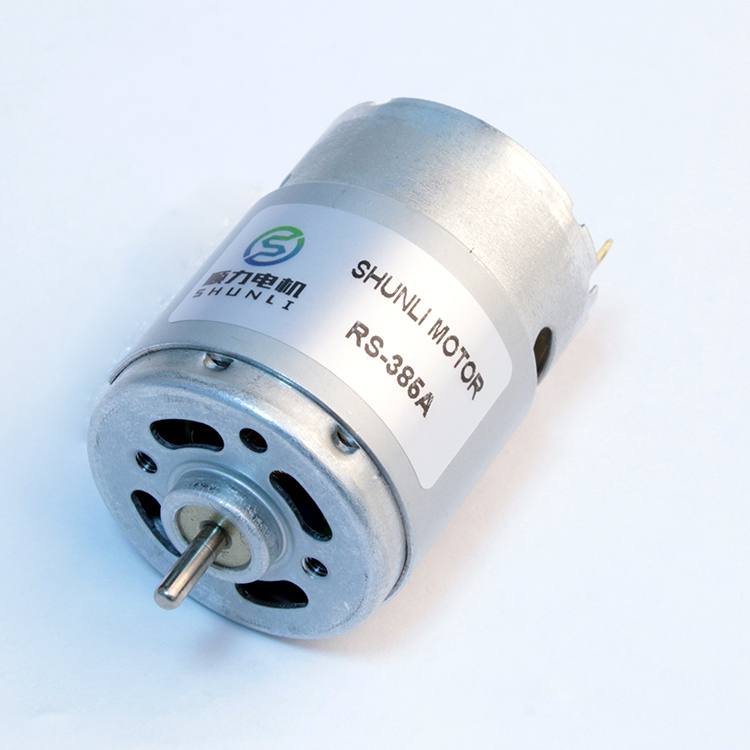

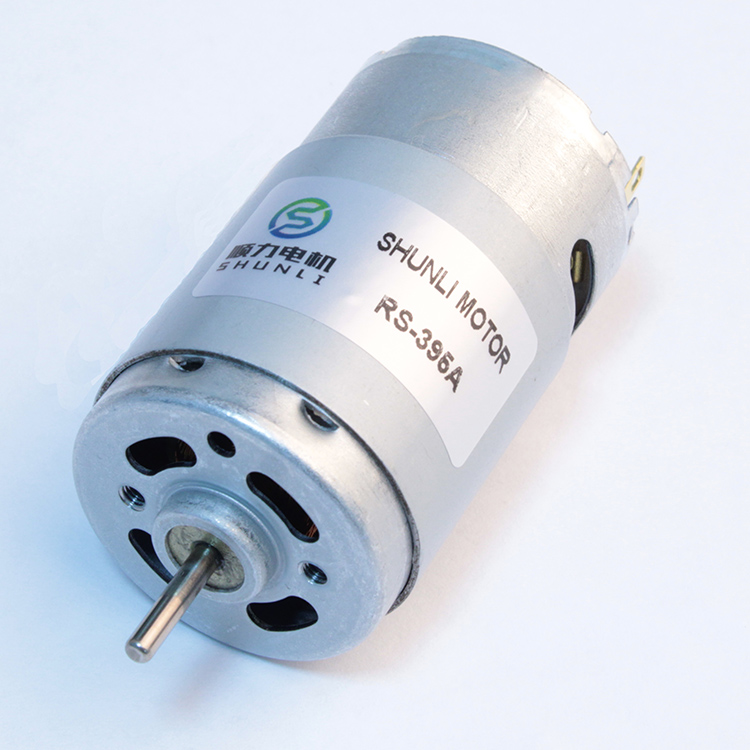

390 Dc Motor for Machine Fan From Shenzhen Supplier 12v 6000rpm Motor

390 DC Motor for Machine Fan 12V 6000RPM Motor

Product Description

ⓘ Motor Customized Specification, Please contact us.

Reference Drawings

Model: RS - 365

Model: RS - 385

Model: RS - 395

ⓘ The length of shaft can be customized, Please contact us.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-390SH	20156R	6.0~12.0	12VDC	5000	0.08	4243	0.33	6.07 / 61.9	2.72	2.22	42.2 / 430
RS-390SH	2975	6.0~12.0	12VDC	12000	0.29	10165	0.33	5.75 / 58.6	1.31	8.9	80.4 / 820
RS-395SH	15130	6.0~12.0	12VDC	3650	0.66	2949	0.25	5.83 / 59.5	1.8	1.06	30.4 / 310
RS-395SH	15100R	6.0~24.0	24VDC	10300	0.07	8893	0.38	7.09 / 72.3	6.68	2.66	54.9 / 560

Product Gallery

Give us a chance to cooperate with you!

Frequently Asked Questions

What are the primary applications for the 390 DC motor?

The 390 DC motor is widely used in machine fans, personal cooling devices, small household appliances, smart office equipment, and other miniature mechanical systems requiring reliable 12V operation.

Can the motor shaft length and performance specifications be customized?

Yes, technical configurations such as shaft length, voltage operating range, speed, torque output, and motor winding details can be tailored to meet your unique project requirements.

What operating voltage range do the RS-390 and RS-395 motors support?

The operating voltage ranges typically vary between 6.0V to 12.0V DC or up to 24.0V DC depending on the motor design, offering flexibility for different power supplies.

What is the difference between the no-load speed ratings of the listed models?

The speed depends on the model configuration. For example, the RS-390SH-20156R runs at 5000 RPM (no-load) at 12VDC, while the RS-390SH-2975 runs at 12000 RPM (no-load) at 12VDC. Refer to our datasheet table for exact specifications.

How can I confirm mounting details and dimensions for integration?

Detailed sizing, positioning, and dimension information can be found in our Reference Drawing section for models RS-365, RS-385, and RS-395 to ensure seamless fit.
