6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

Send Inquiry

Product Description

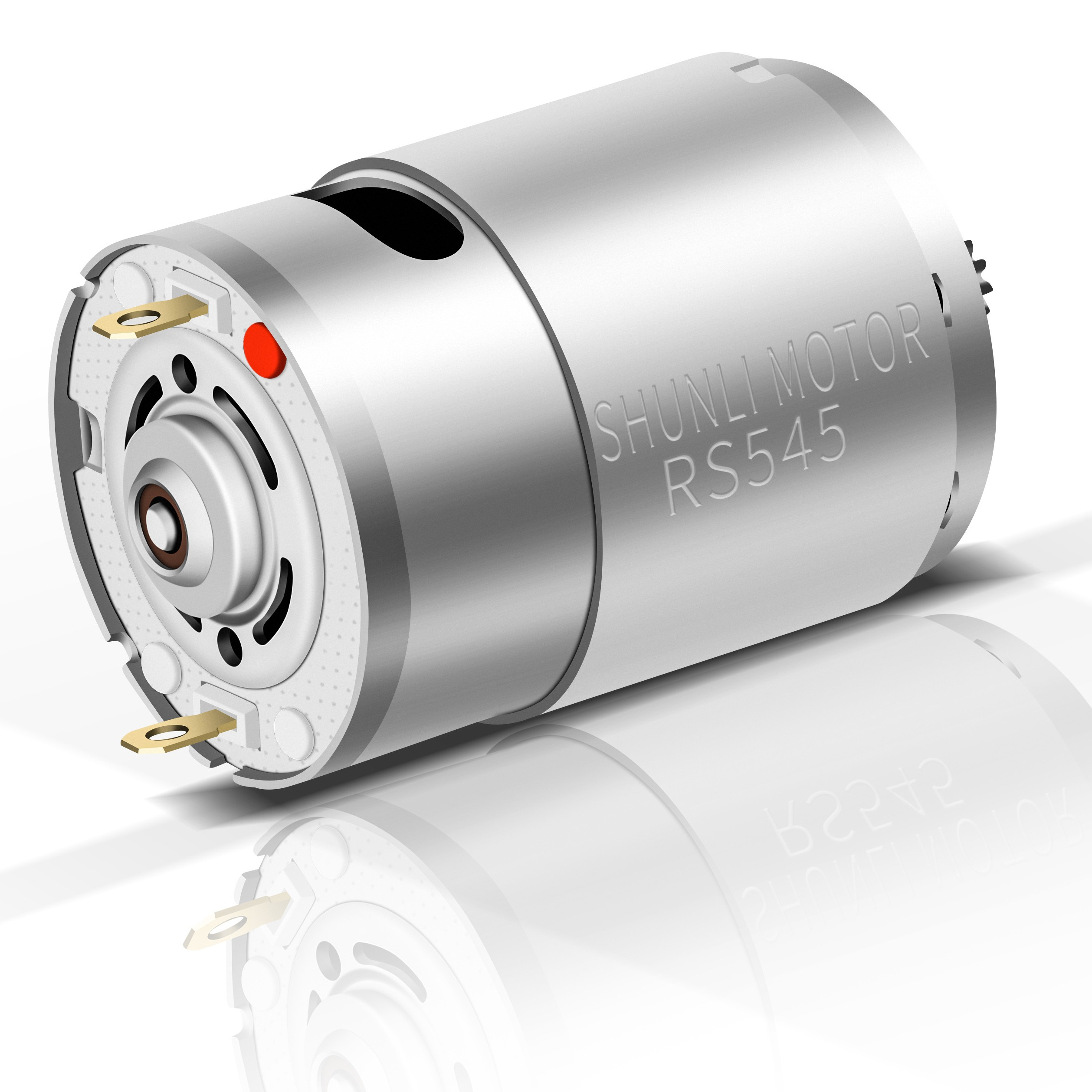

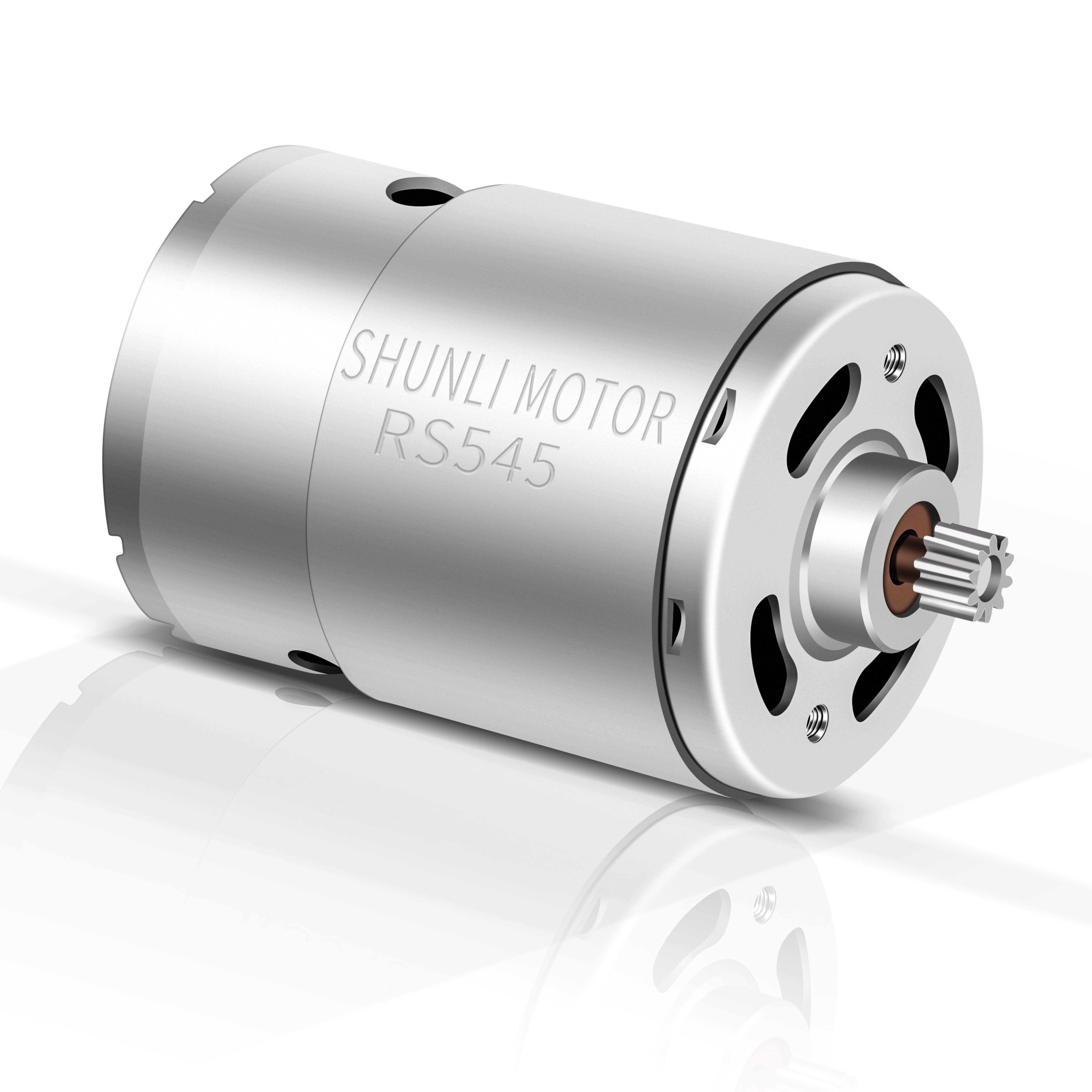

6v 12v 24v micro motor electric car motor micro dc motor

Product Details

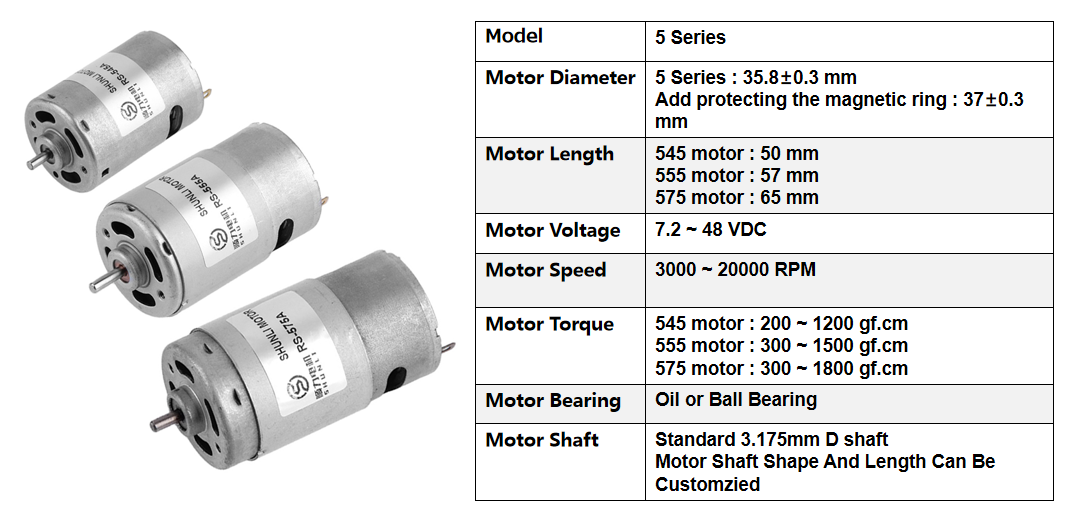

Motor Customized Specification, Please contact me.

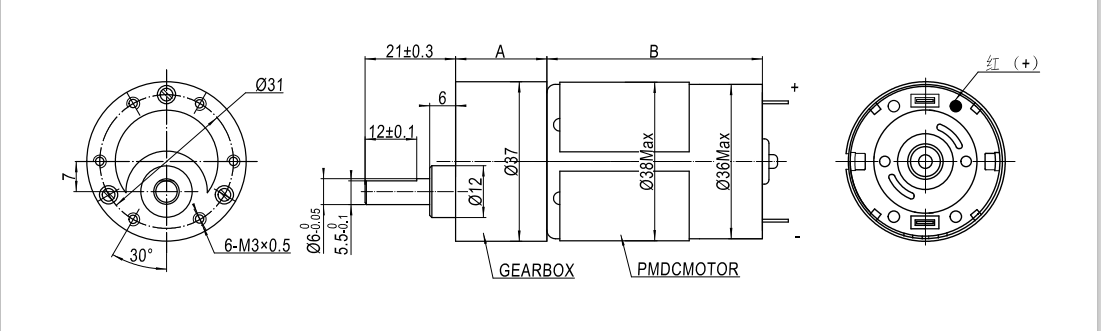

Reference Drawing

------ RS - 545 A 6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

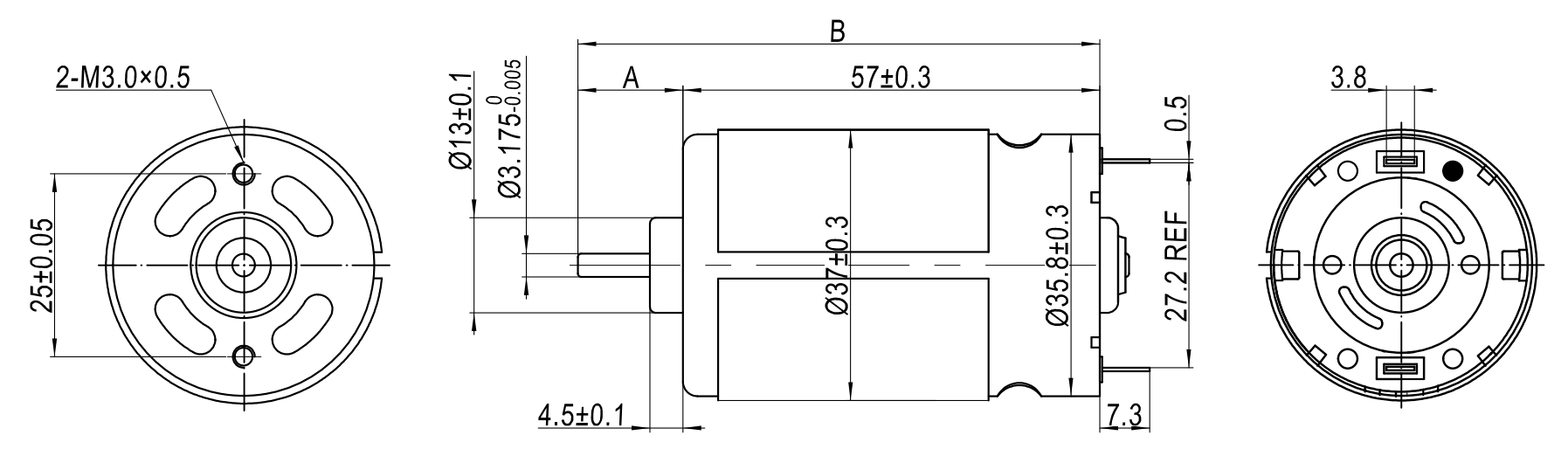

------ RS - 555 A 6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

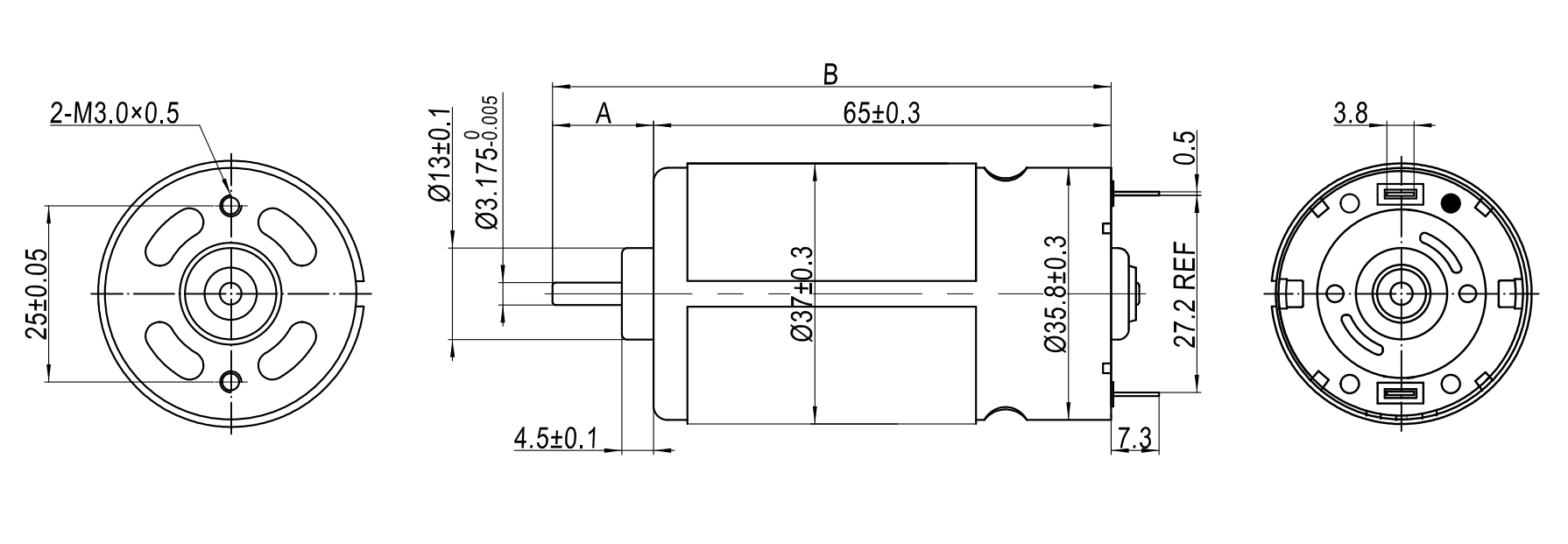

------ RS - 575 A 6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

The length of shaft can be customized, Please contact me.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7 / 262	10.6	4.8	204 / 2080
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6 / 261.3	40.36	48.89	281.4 / 2870
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9 / 223.4	15.35	11.31	156 / 1591
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2 / 195.8	12.09	4.2	124.5 / 1270

Recommend Product

Frequently Asked Questions

What voltage configurations are available for these micro motors?

These PMDC micro motors are designed to operate across multiple voltage levels, with standard configurations available in 6V, 12V, and 24V. They support an operating voltage range from 6.0V up to 24.0V depending on the model.

Can the motor's shaft dimensions be modified for specific projects?

Yes, the length and dimensions of the output shaft can be customized according to your mechanical design and integration requirements. Please contact us to share your specifications.

What parameters can be customized for these PMDC motors?

We offer customization for various performance parameters, including operating voltage, no-load and rated speeds, stall torque, current limits, output power, and special shaft configurations.

What are the typical applications for these micro motors?

These micro DC motors are widely used in electric car mechanisms, automotive parts, smart home appliances, power tools, office equipment, and other miniaturized automated systems requiring stable drive performance.

How do I select the right motor model between RS-545, RS-550, and RS-555?

Model selection depends on your required torque, speed, and dimensional constraints. The technical datasheet lists detailed speed, power, and stall torque values for each model configuration to help guide your choice.
