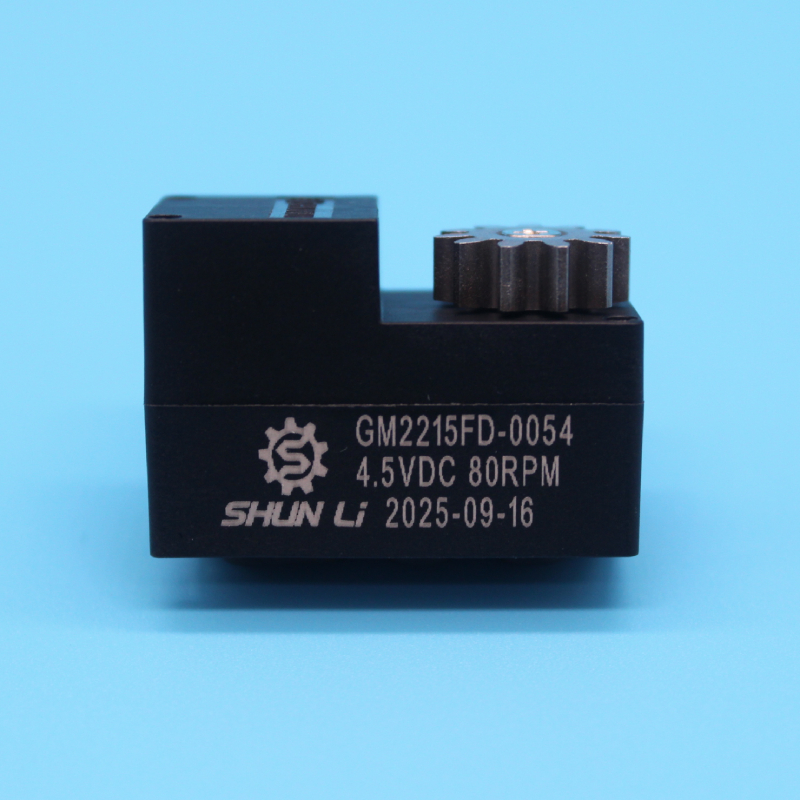

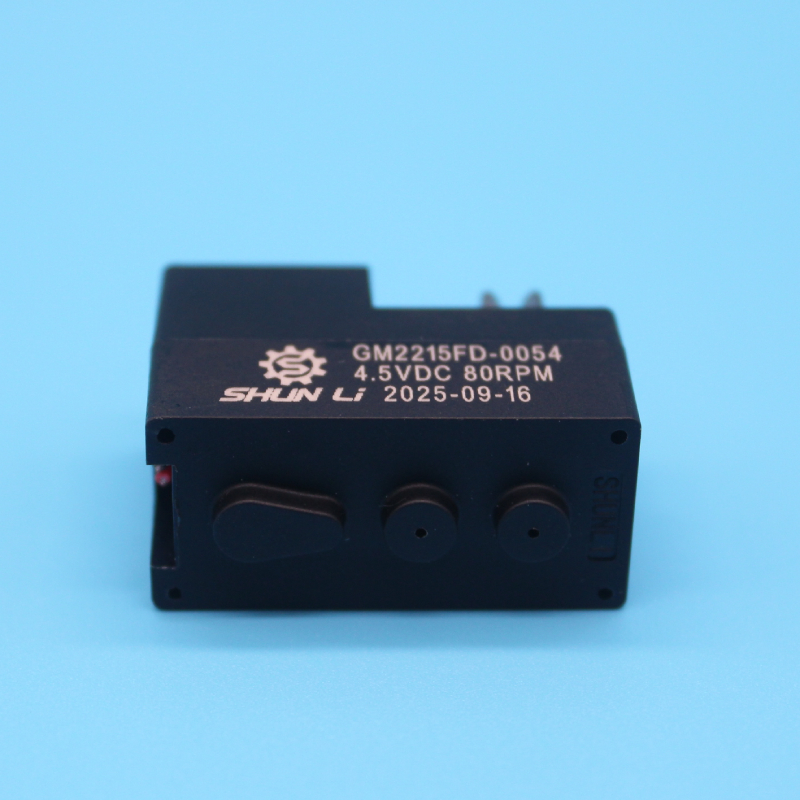

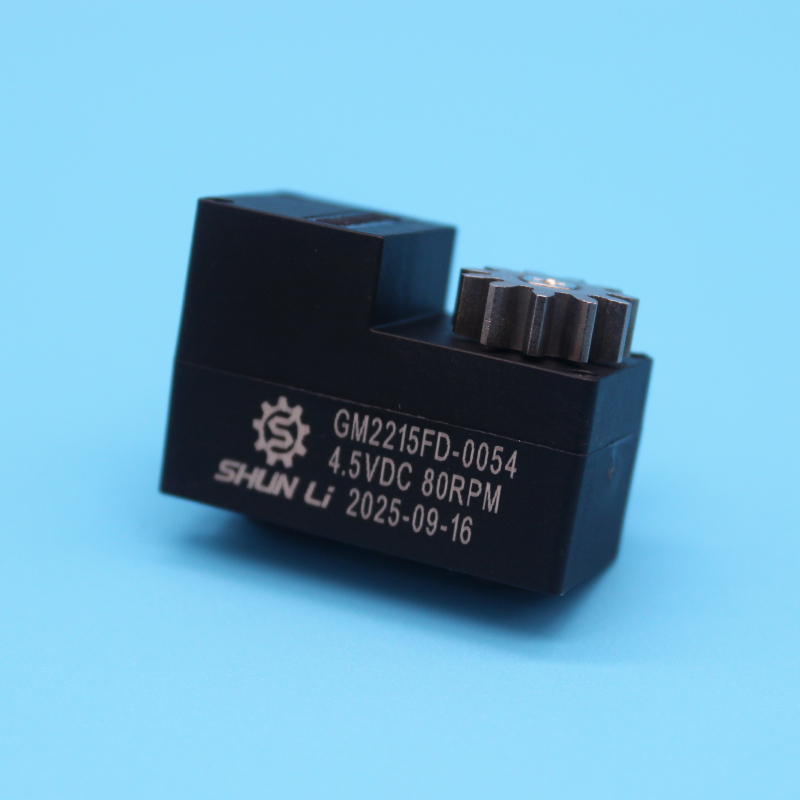

Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
1 / 5
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock

Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock

Send Inquiry

Product Description

Smart Lock Motor Banner
Product Description

2215 smart lock motor steering gear automatic door lock micro motor gearbox reduction motor

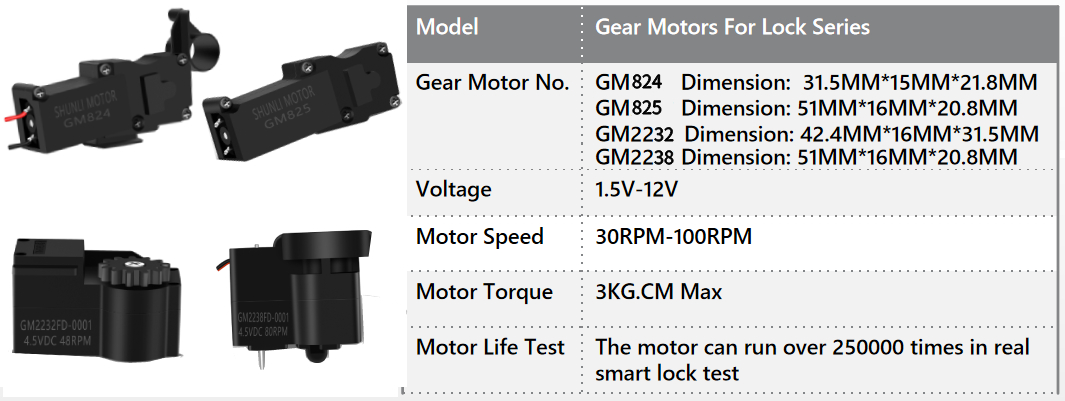

Smart Lock Micro Motor Gearbox
Motor Customized Specification & Drawings

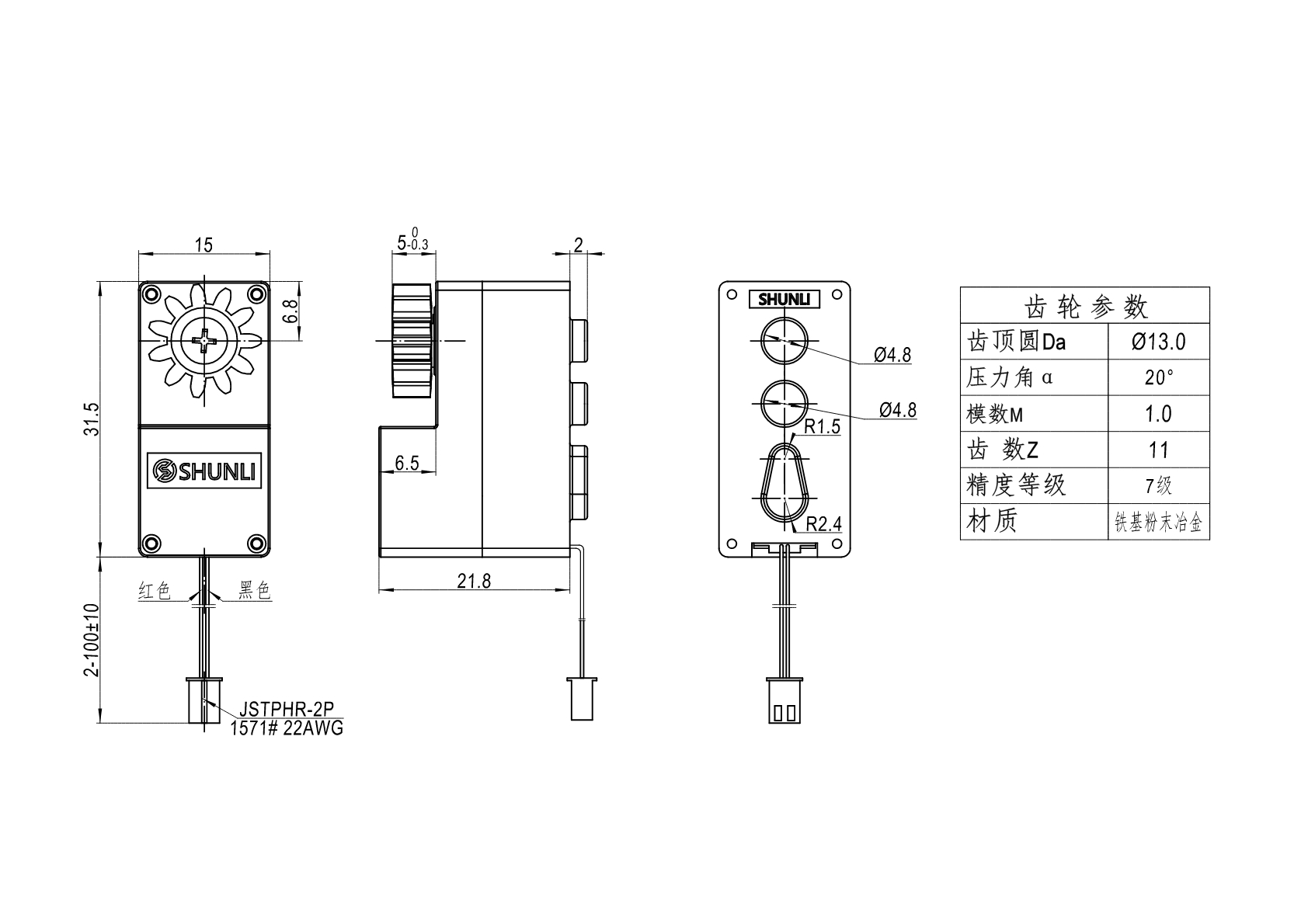

GM2215 Reference Drawing
Reference Drawing — GM2215

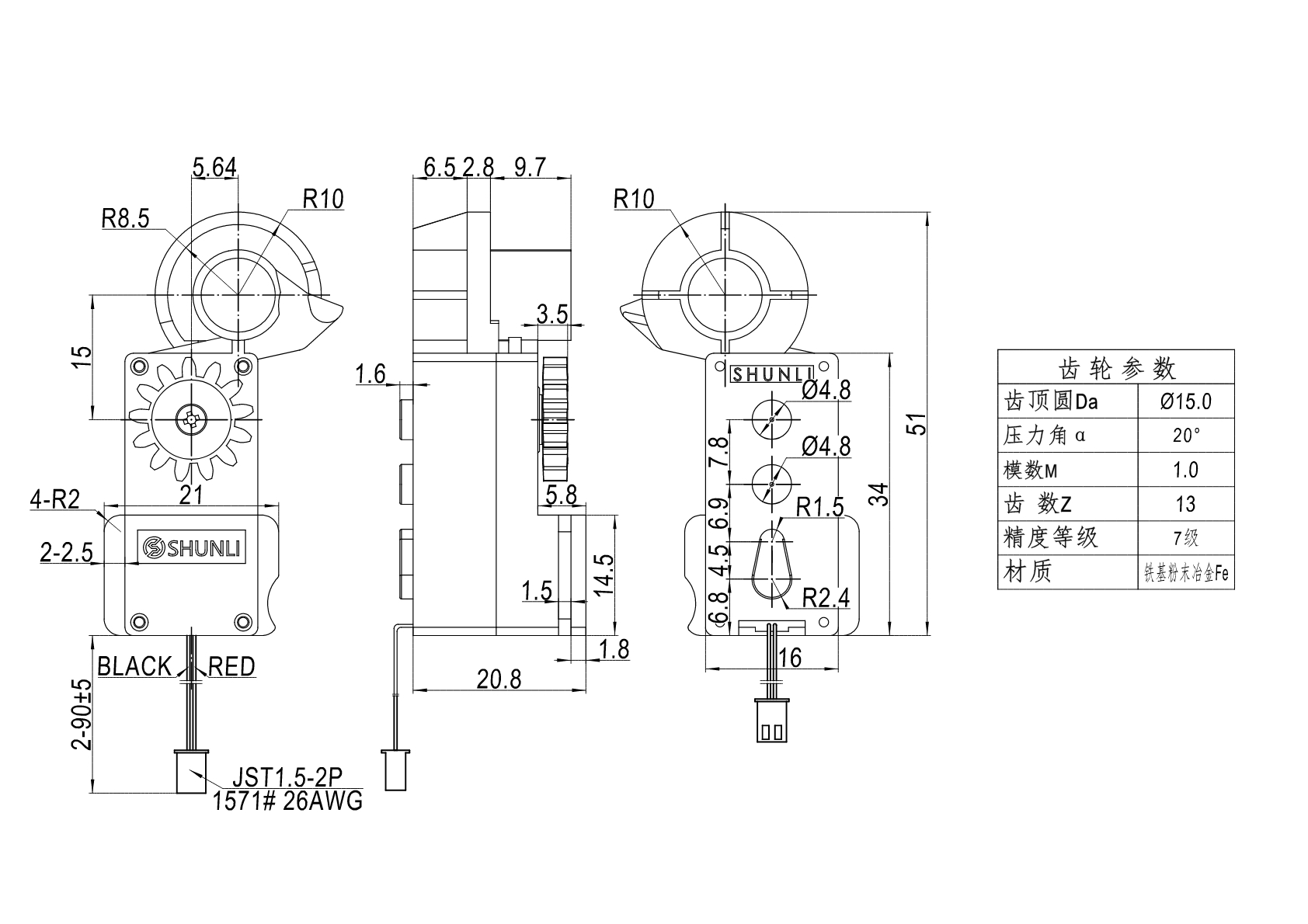

GM2219 Reference Drawing
Reference Drawing — GM2219
Reference Datasheet
Gearbox Technical Data
Parameter Value Specification
Ratio 199K / 241K / 265K
Max. Rated Torque 1.5 ~ 2.5 Kgf.cm
Max. Gear Breaked Torque 4 ~ 5 Kgf.cm
Gearbox Efficiency 45% ~ 60%
Gearmotor Technical Data
Gearmotor Model Ratio Rated Voltage No-Load Rated Stall
Speed Current Speed Current Torque Current Torque
RPM mA RPM mA mN.m / gf.cm mA N.m / Kgf.cm
GM2215FMN20-199K 1 : 199 4.5 VDC 52 ≤ 50 40 ≤ 120 18 / 180 ≤ 350 0.18 / 1.8
GM2222FMN20-230K 1 : 230 58 ≤ 78 49 ≤ 135 24 / 240 ≤ 450 0.2 / 2.0
GM2219FMN20-265K 1 : 241 58 ≤ 65 50 ≤ 130 24 / 240 ≤ 680 0.2 / 2.0
62 ≤ 75 51 ≤ 140 35 / 350 ≤ 750 0.22 / 2.2
Product Showcase

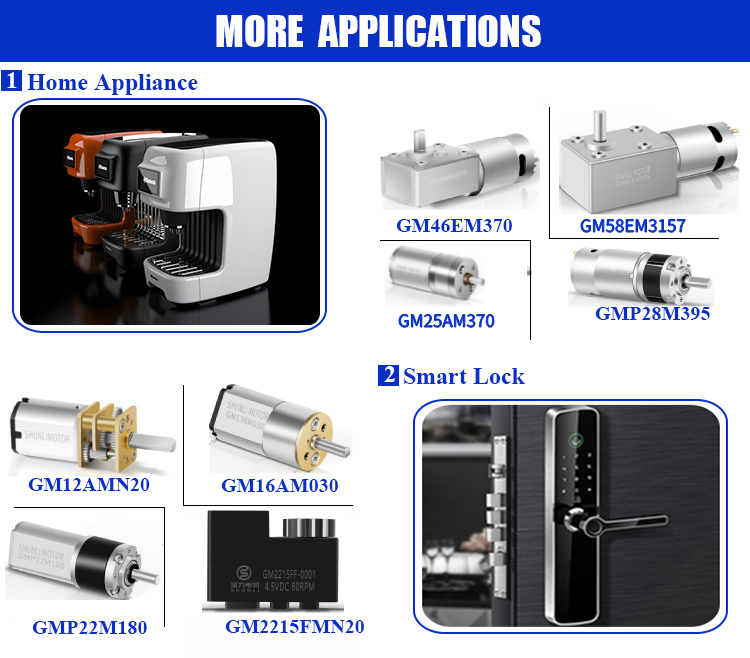

Motor Products Overview 1

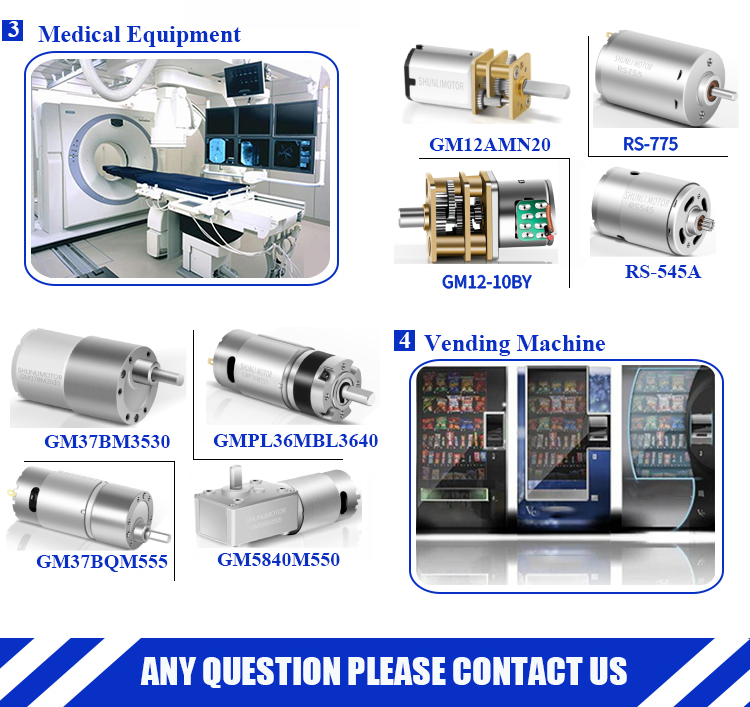

Motor Products Overview 2
Production Process 1

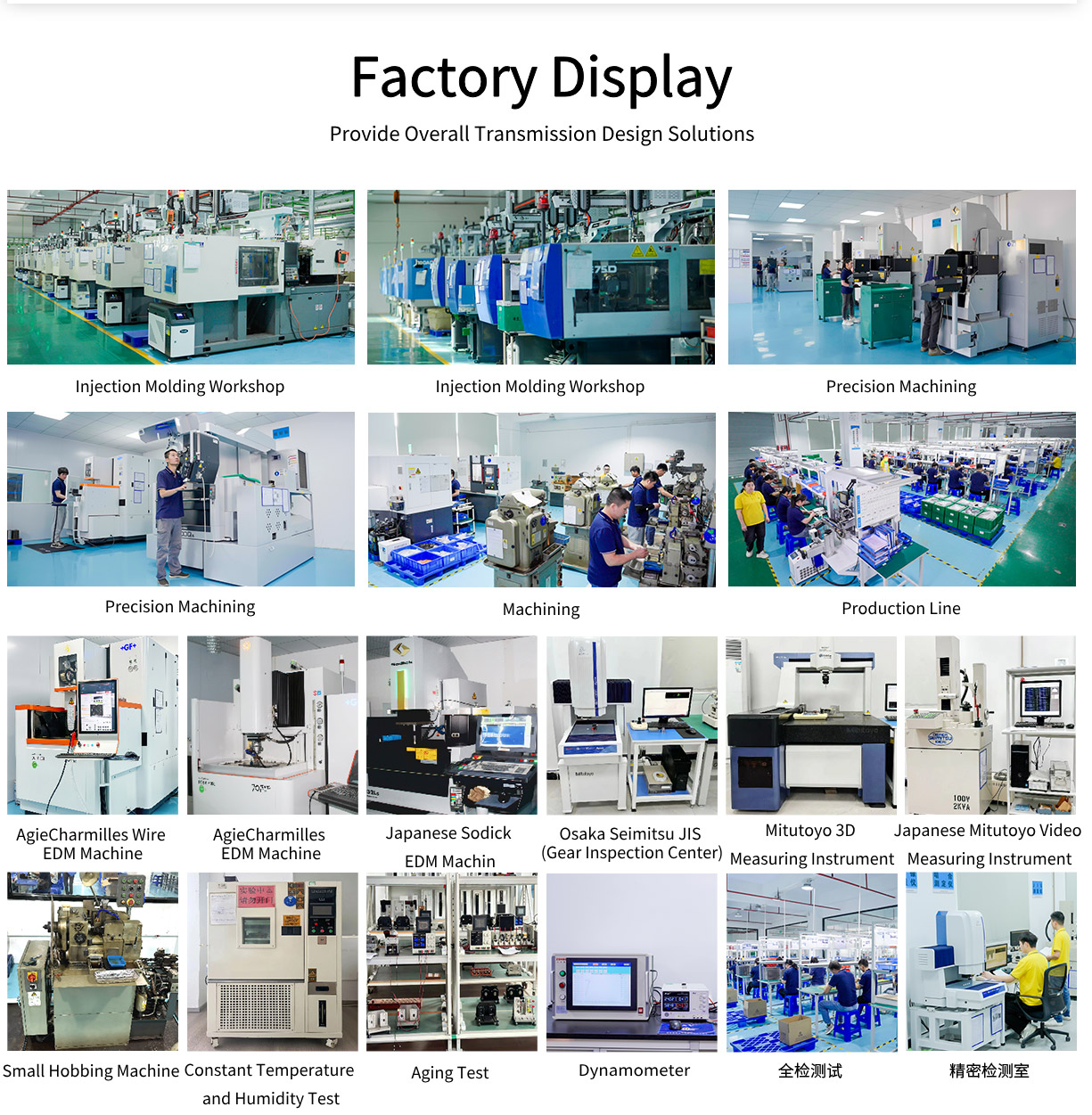

Production Process 2
Production Process 3
Production Process 4
Quality Control & Factory Testing
Testing Equipment and Laboratory
Frequently Asked Questions (FAQ)
1 Are you a trading company or a manufacturer?
We are a professional manufacturer. We specialize in micro DC motors and DC gear motors with over 14 years of production experience.
2 What are the payment term options for new customers?
We offer flexible online secure payment options that accept MasterCard, Visa, and similar cards. Customers can also choose to settle payments via PayPal, T/T wire transfer, and other standard systems.
3 Can you customize the motor specifications if I cannot find a suitable one on the website?
Yes. We can customize motor designs, voltages, speeds, torques, and gearbox reduction ratios to match specific product applications and customer technical requirements.
4 Do your micro gear motors have standard product certifications?
Yes, our products carry certifications including CE, FCC, ISO, and others. If you have specific regional compliance requirements, we can assist in applying for the matching certifications.
5 What processes are involved in your internal Quality Control?
We have specialized quality control personnel monitoring every stage of the production line. Fully assembled motors undergo detailed inspections using testing machinery, including hardness testers, 2.5D image testers, salt spray chambers, operational life testers, temperature testing chambers, and acoustic noise testers.
6 What typical applications are these micro gear motors designed for?
These miniature motors are highly optimized for precision electronic locks, smart door locks, automated steering gear systems, micro gearbox reduction units, and other space-constrained automation assemblies.
