Manufacturer Worm 755 Dc Motor 6 Volt Gear Small Micro 12v 15000rpm Permanent Magnet Brush Home Appliance

1 / 4

Manufacturer Worm 755 Dc Motor 6 Volt Gear Small Micro 12v 15000rpm Permanent Magnet Brush Home Appliance

Send Inquiry

Product Description

6v 12v High RPM 9000rpm 15000rpm 750/755 DC Motor

ℹ Motor customized specifications and configurations are available. Please let us know your requirements.

Product Details

Reference Drawings

⚙ The length of the shaft can be customized to match your exact configuration.

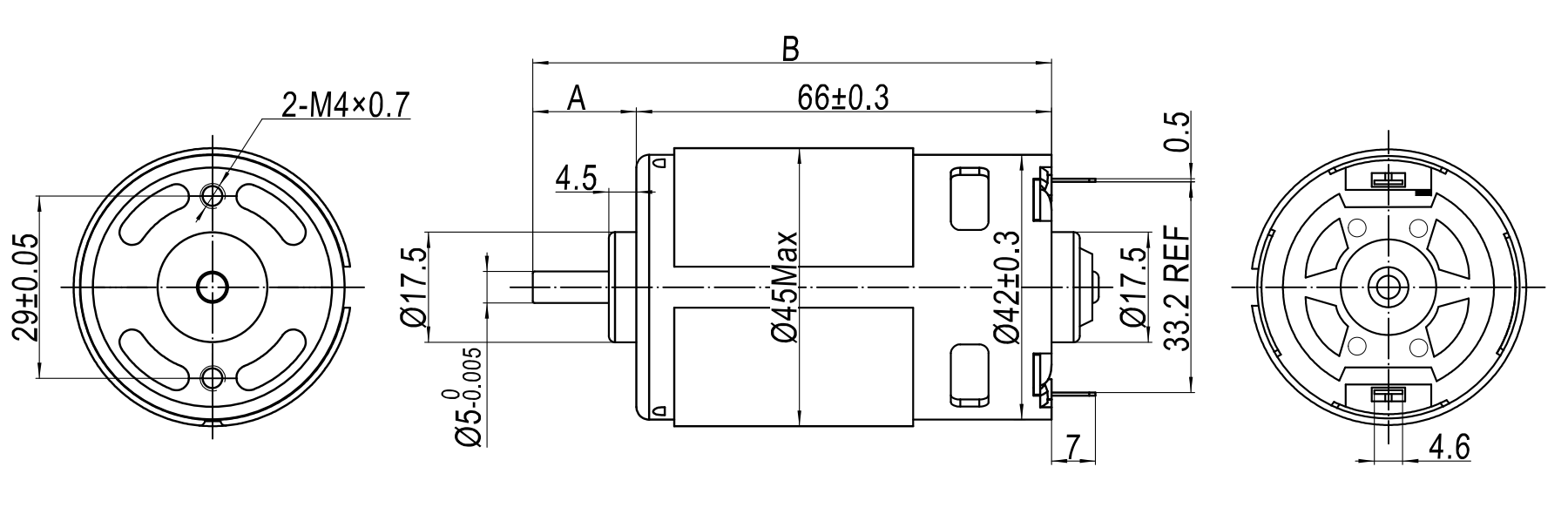

RS-755 H Reference Design RS-755 H Technical Drawing

RS-775 H Reference Design RS-775 H Technical Drawing

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
Model		Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m / gf.cm)	Power (W)	Current (A)	Torque (mN.m / gf.cm)
RS-750H	7032R	6.0 ~ 12.0	12 VDC	15000	1.79	12671	7.52	48.6 / 496	66.6	55.6	393.1 / 4010
RS-755H	7512R	3.0 ~ 6.0	6 VDC	9500	2.26	8123	9.31	45.1 / 460	38.2	66.34	306.9 / 3130

Application Scope

Certifications

Why Choose Us

Our Production Strength

We are a dedicated factory specializing in manufacturing micro motors for over 14 years. Equipped with three factories, a professional R&D division, and an experienced engineering team, we ensure reliable support from development to delivery.

Rigorous Quality Control

We perform rigorous checks throughout every phase of production. Quality is the core foundation of our operations and product development, starting from raw material inspections up to pre-shipment tests.

Our Commitments

High credibility supplier prioritizing long-term partnerships.
100% on-time delivery to keep your production runs continuous and predictable.
Standard samples ready in 2 weeks; custom prototypes completed in 3 weeks.
Efficient communication channels, responding to inquiries within 2 hours.

Recommend Products

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a direct manufacturer. We have specialized in developing and producing micro DC motors and DC gear motors for over 14 years.

What payment methods do you support?

We support multiple payment channels including secure online trade assurance orders (credit cards/Visa/MasterCard), PayPal, and T/T bank transfers.

Can you customize a motor if I cannot find a suitable model?

Yes, customization is our strength. We design custom motor specifications (including speed, voltage, torque, shaft layout, and size) to suit your unique requirements.

What quality certifications do your motors hold?

Our motors are compliant with CE, FCC, ISO, and other global specifications. We can apply for additional certifications if required by your target markets.

How do you maintain quality control?

We employ strict QA processes throughout our production lines, utilising testing equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise chambers.

What is the typical lead time for prototype samples?

Standard sample configurations are produced within 2 weeks, while customized specifications or components take up to 3 weeks.
