| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||
| GMP16M030-100K | 1 : 100 | 3.7 VDC | 100 | ≤ 80 | 72 | ≤ 300 | 0.03/0.3 | ≤ 700 | 0.11/1.1 |
| GMP16M050-300K | 1 : 300 | 3.7 VDC | 50 | ≤ 200 | 40 | ≤ 650 | 0.1/1.0 | ≤ 3000 | 0.55/5.5 |
| Number of stages | 4 | 5 | 6 | 7 |
|---|---|---|---|---|
| Ratio | 25K / 30K / 35K / 42K | 70K / 85K / 100K / 119K | 143K / 169K / 200K / 239K / 285K | 300K / 400K / 568K / 800K |

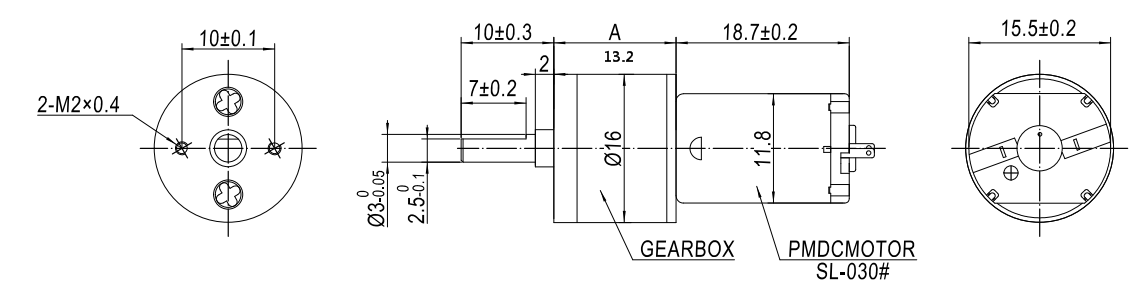

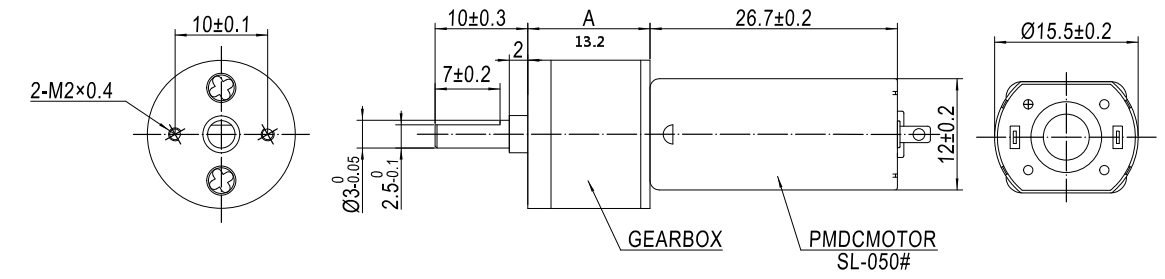

| Gearbox Length "A" (mm) | 13.2 | 14.1 | 15.6 | 17.0 |
| Max. Rated Torque | 0.6 Kgf.cm | 1.0 Kgf.cm | 1.5 Kgf.cm | 2.0 Kgf.cm |
| Max. Gear Broke Torque | 1.5 Kgf.cm | 3.0 Kgf.cm | 4.0 Kgf.cm | 5.0 Kgf.cm |
| Gearbox Efficiency | 60%~70% | 55%~60% | 50%~55% | 45%~50% |
We are a factory specialize in producing motors more than 14 years, professional R&D team mature management will bring you a pleasant shopping experience.
In order to confirm quality, from we receive material to shipment to be carefully checked every step of the way. Quality is our basis of our development.
We are gold seller and in possession of high credibility.
100% on-time delivery rate confirm your product arrives timely.
Samples will be produced within 2 weeks. Customized samples will be produced within 3 weeks.
Timely reply, your message will be replied within 2 hours.
We are a professional factory specializing in micro DC motors and DC gear motors for over 14 years.
We can arrange online assurance orders for new customers, which can be settled online via Visa, MasterCard, etc. Customers can also choose to pay with PayPal or T/T.
Yes, we specialize in custom motor designs and can customize specifications to suit your application requirements.
Yes, we have CE, FCC, ISO, and other relevant certificates. If you need other specific certifications, we can apply for them.
We have dedicated quality control checkers at every step of the production process. The finished products are thoroughly tested using advanced machines like Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
Standard samples are generally completed within 2 weeks, while customized samples are completed within 3 weeks to ensure precision requirements are met.
