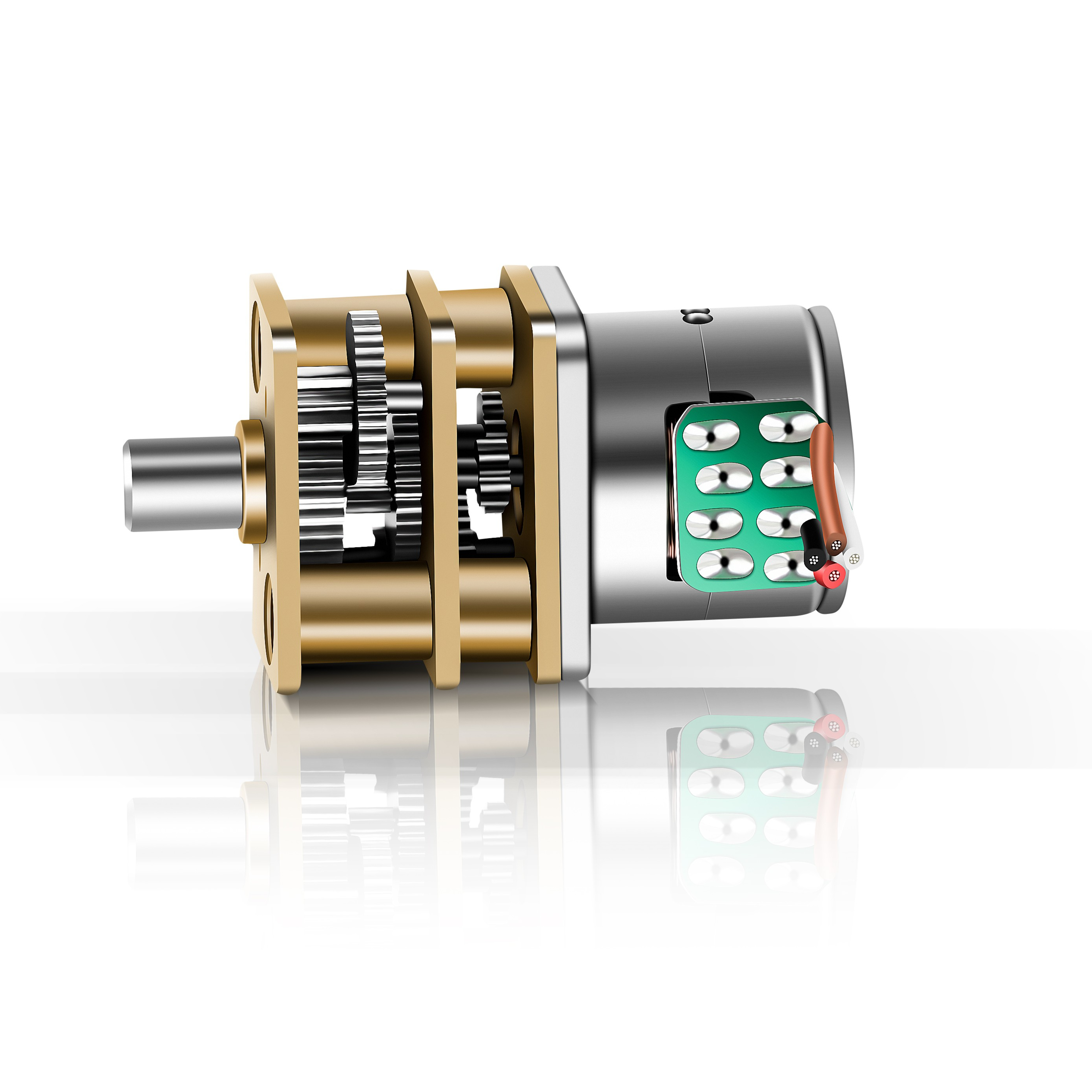

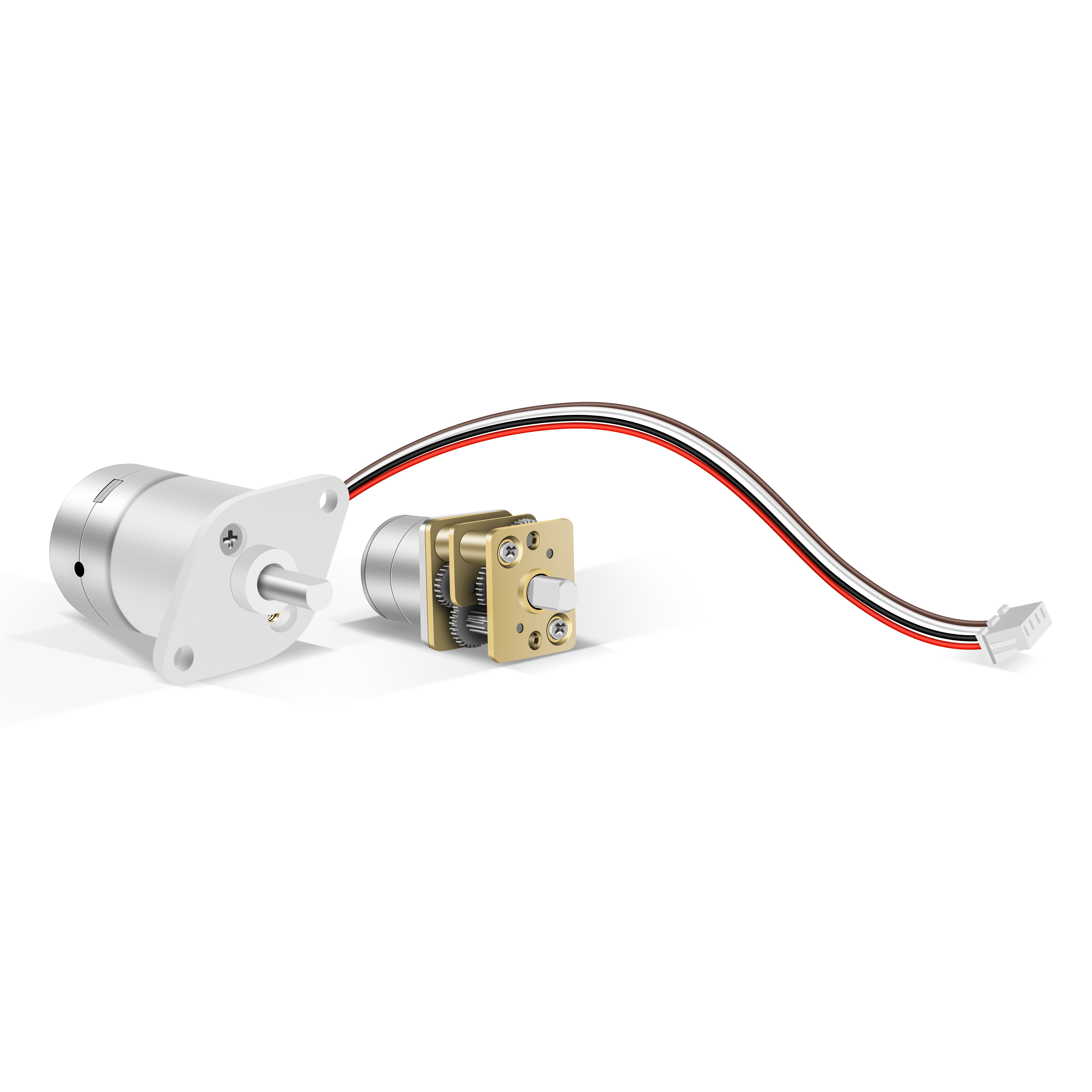

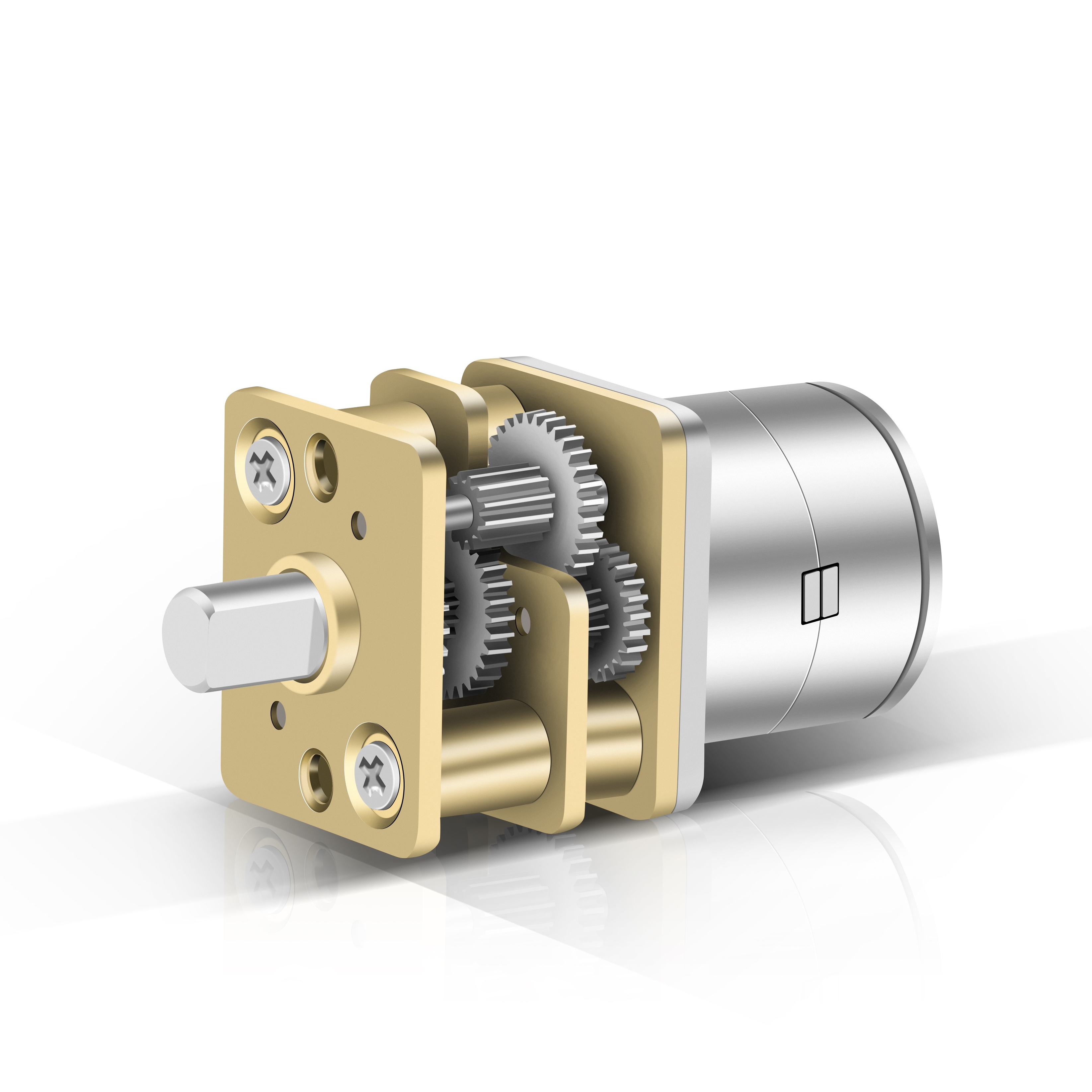

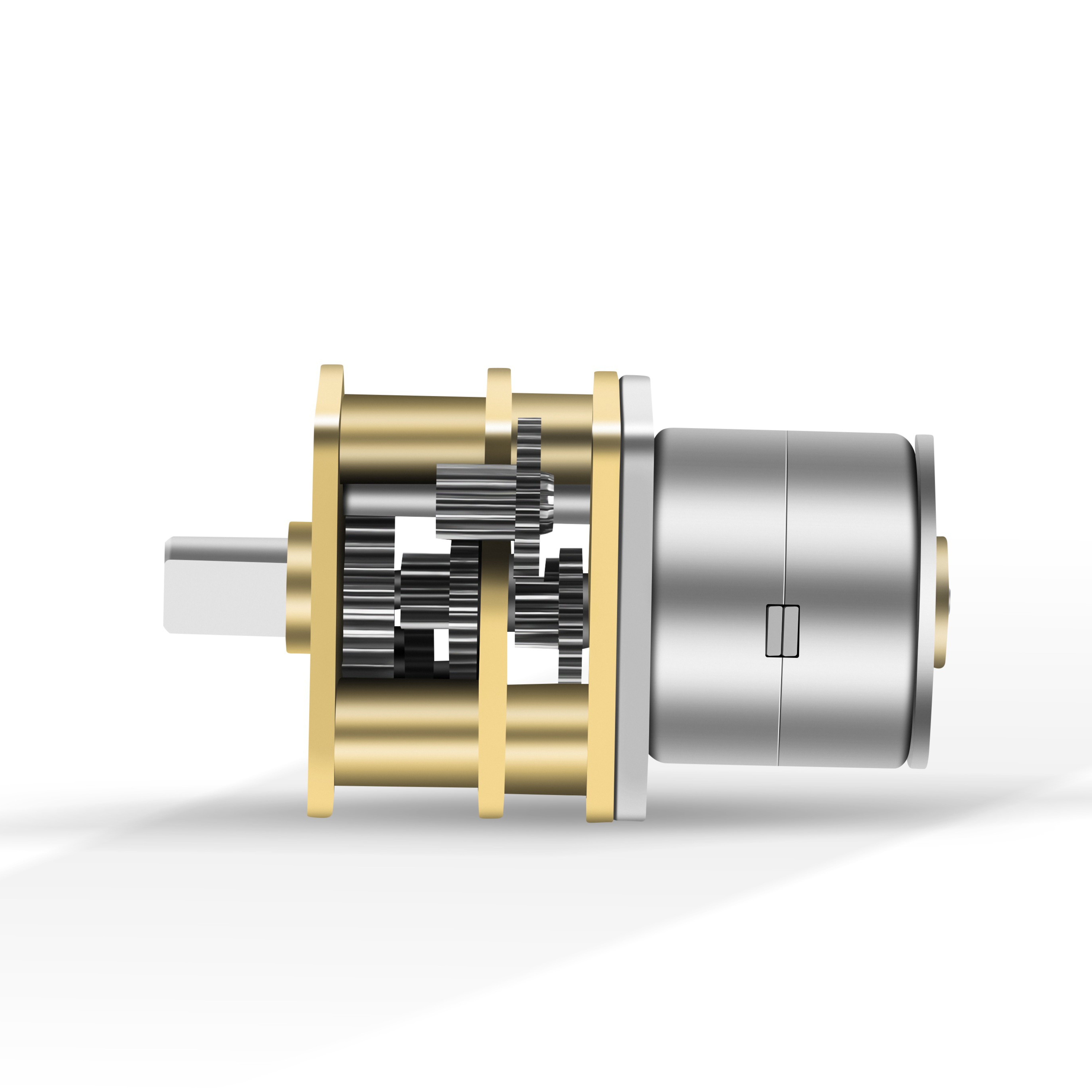

Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner

Product Description

Product Banner
Product Description
Customized 12mm micro dc gear motor Non captive stepper motor miniature 5v stepper motor of medical equipment

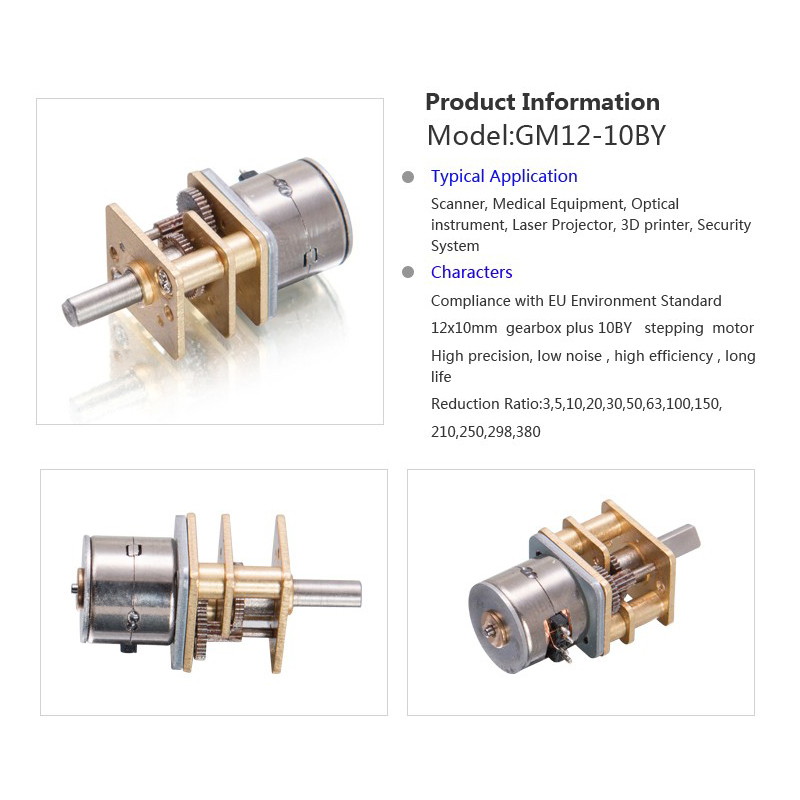

Micro DC Gear Motor
Motor Customized Specification

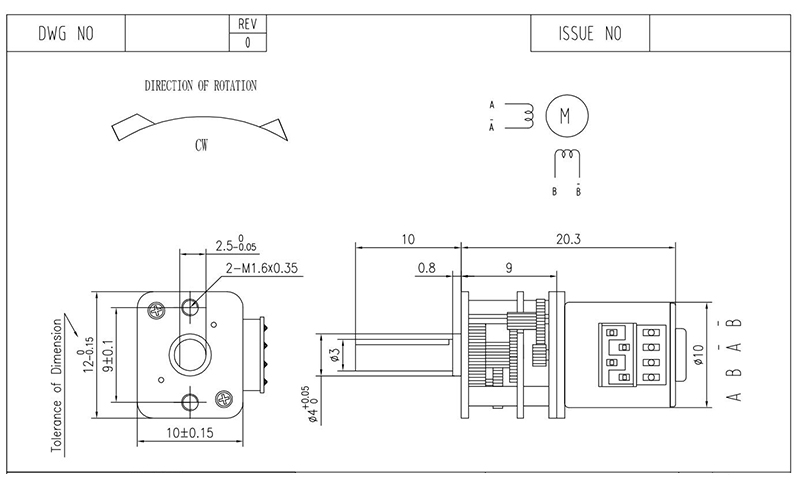

Reference Drawing
------ GM12-10BY
Reference Drawing
Reference Datasheet
Gearbox Technical Data
Number of stages 1 2 3 4 5
Ratio 4K / 4.75K 16K / 19K / 22.6K 64K / 74K / 90K / 107K 256K / 304K / 361K / 429K / 509K 1024K / 1216K / 1444K / 1715K / 2036K / 2418K
Gearbox Length "L" (mm) 13.3 16.8 20.3 23.8 27.3
Max. Rated Torque 1.0 Kgf.cm 2.0 Kgf.cm 4.0 Kgf.cm 4.0 Kgf.cm 4.0 Kgf.cm
Max. Gear Breaked Torque 3.5 Kgf.cm 6.5 Kgf.cm 12.5 Kgf.cm 12.5 Kgf.cm 12.5 Kgf.cm
Gearbox Efficiency 80%~90% 70%~80% 60%~70% 50%~60% 40%~50%
Customized 12mm micro dc gear motor Non captive stepper motor miniature 5v stepper motor of medical equipment
Gearmotor Technical Data
Gearmotor Model Ratio Rated Voltage (V) No-Load Rated Stall
Speed (RPM) Current (mA) Speed (RPM) Current (mA) Torque (N.m / Kgf.cm) Current (mA) Torque (N.m / Kgf.cm)
GMP22M130-64K 1 : 64 6 VDC 138 ≤ 160 110 ≤ 450 0.095 / 0.95 ≤ 1700 0.42 / 4.2
GMP22M180-256K 1 : 256 5 VDC 38 ≤ 180 30 ≤ 1050 0.32 / 3.2 ≤ 3900 1.25 / 12.5

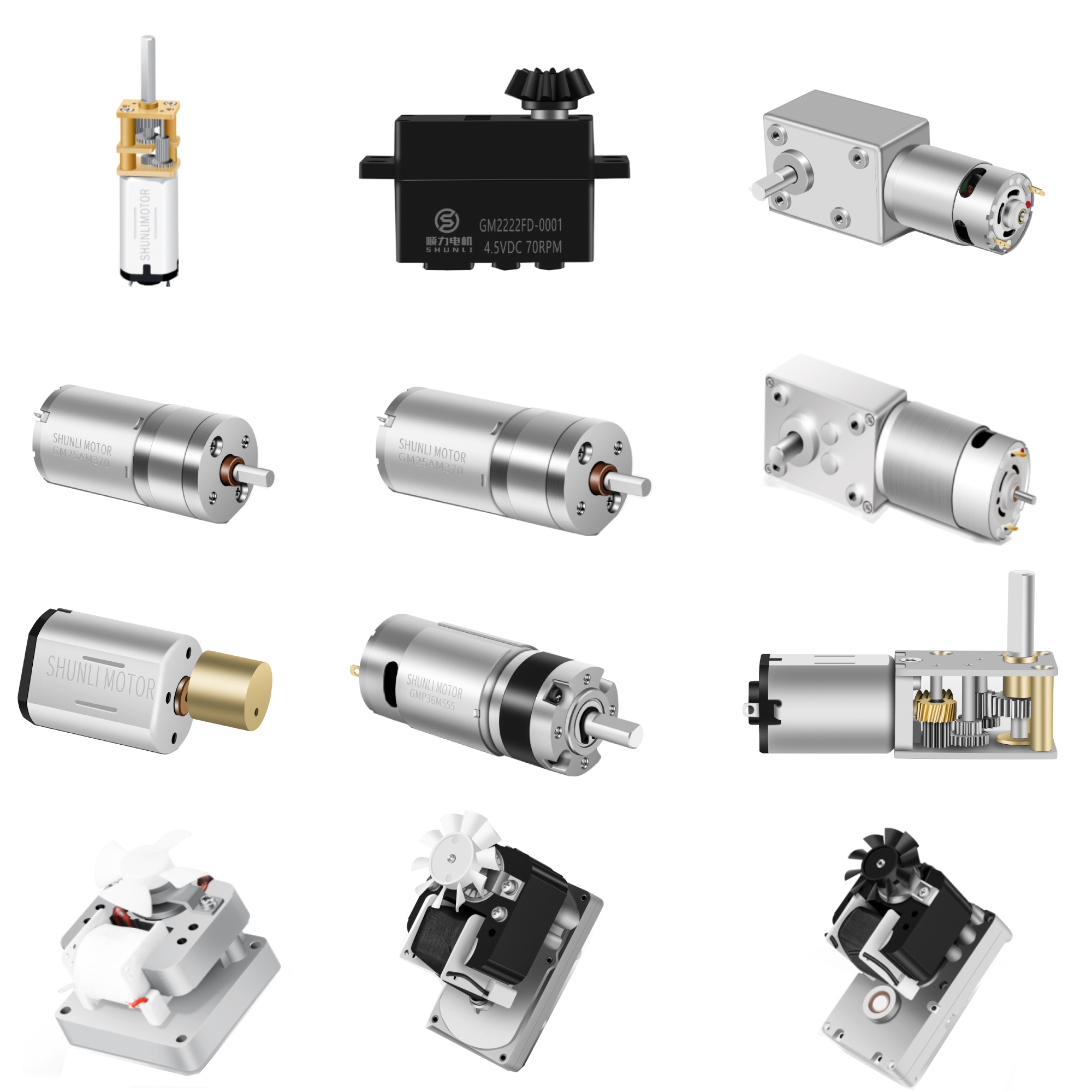

Product Options 1
Product Options 2
Certifications
Certifications

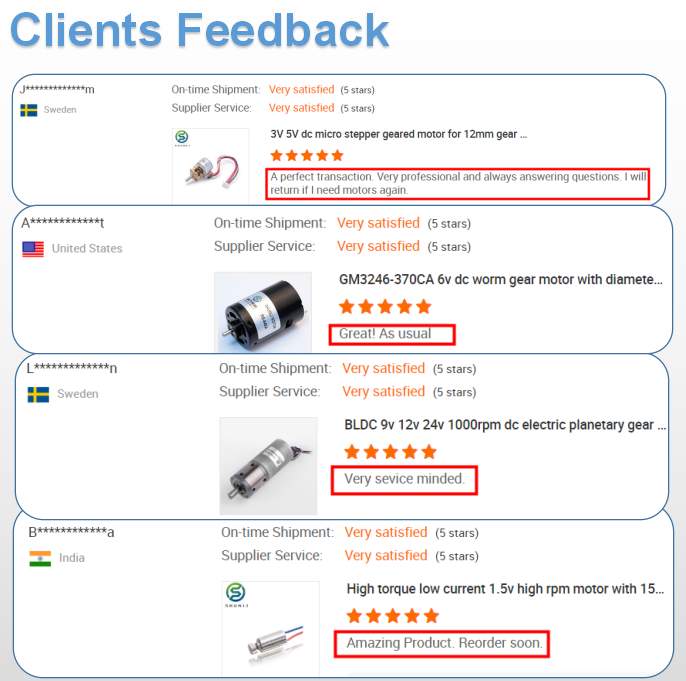

Customer Evaluation
Customer Evaluation
Production Facility

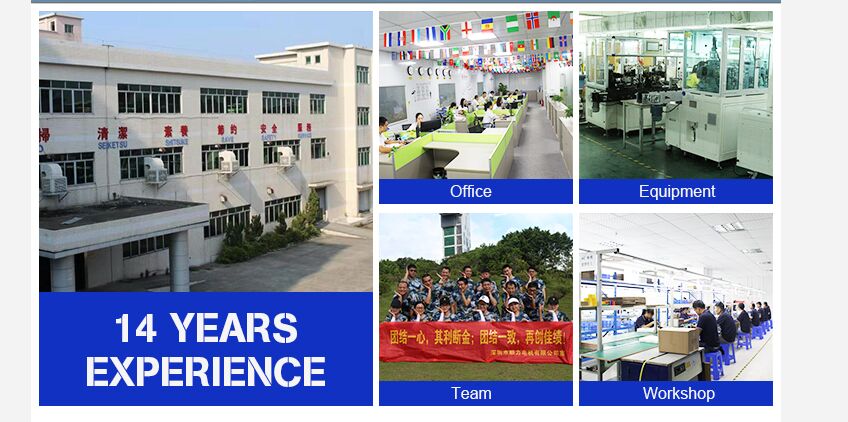

Production Workshop 1
Production Workshop 2
FAQ
1 Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
2 What is the payment term for a new customer?
We can draw up an Online Assurance Order for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal or T/T, etc.
3 I cannot find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
4 Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
5 How is your Quality Control?
We have professional inspection staff on every production line process. After finishing the entire motor, we use specialized quality testing machines, such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers, etc.
FAQ Reference
Looking forward to your feedback!
